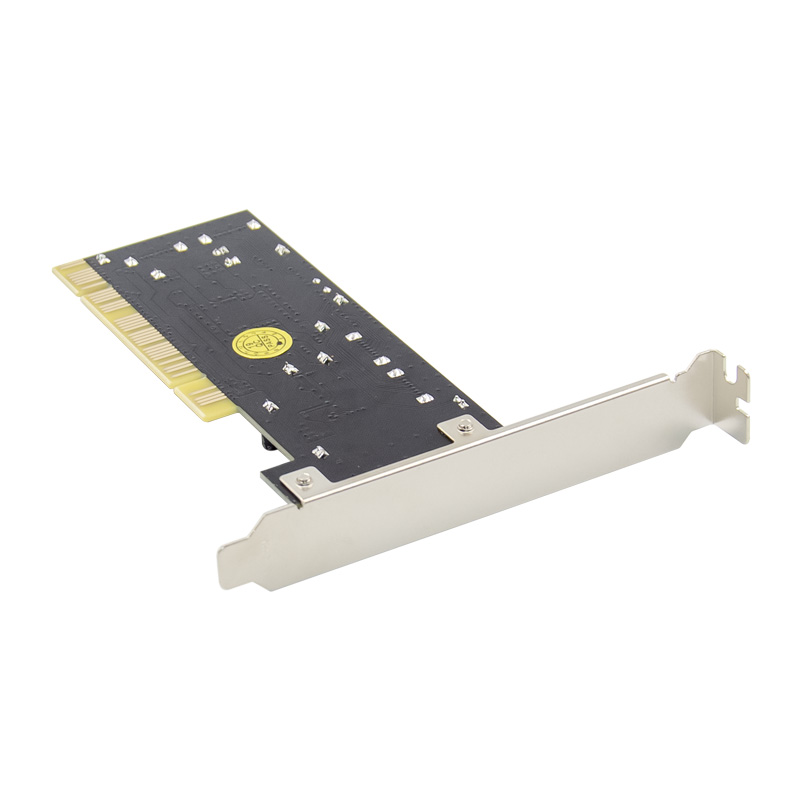

PCI-S1-4I PCI 4-port SATA 150 1.5 Gbps RAID Expansion Card provides an inexpensive way for users to increase the speed or fault-tolerance of their PC. It can upgrade your desktop computer to 4 Serial-ATA channels. It is fully compliant Serial ATA ports on the device side to access Serial ATA storage media such as hard disk drives, external enclosure, CD-ROM / RW and DVD-ROM / RW drives.

Features

• 4 Internal SATA PCI Card
• Serial ATA rate up to 1.5Gb/s
• Serial ATA Specification 1.0
• Co-resides with Motheboard IDE devices
• Supports HDD larger than 137GB
• Supports RAID 0 / 1 / 0+1
• ROM BIOS support Boot feature
• Plug and Play
• Bundle driver to MAX. performance
• Supports Windows and Linux O.S.
• Certified by CE, FCC, VCCI, BSMI, and RoHS

Specifications

• Chipset: Silicon Image Sil3114
• Bus Type: PCI Rev 2.3, 32bit 33/66MHz
• Connector: 4 Internal SATA Port
• Connector Type: Serial ATA 1.0
• FIFO: 256 byte
• Data Rate: Max 1.5Gb/s (150MB/s)
• Raid Array
• Raid 0 (striping), Raid 1 (mirroring), Raid 5 (Parity Raid)
• Raid 0+1 (mirroring + striping) and oncatenation modes
• OS Support: Windows 98SE / ME / NT4.0/ 2000 / XP / 2003 / Vista/ 7 / 8 / 8.1 / 10, 64 bit system, Linux
• Certifications: CE, FCC, RoHS

Package Contents

• 1 x PCI Sil3114 4-Channel SATA 150 RAID card
• 1 x User manual
• 1 x SATA Cable
• 1 x CD-Drive
